Presence Detection
PIR sensors allow you to sense motion, almost always used to detect whether a human has moved in or out of the sensors range. They are small, inexpensive, low-power, easy to use and don’t wear out. PIR refers to “Passive Infrared”, “Pyroelectric”, or “IR motion” sensors.

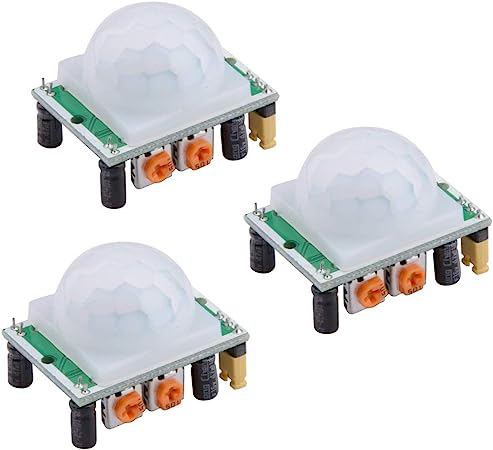

These sensors HC-SR501 are great for DIY home automation projects. I use these primarily for automatically turning on and off LED light strips when motion is detected. These can be powered with the low voltage typically available It can automatically and quickly open various types of incandescent, fluorescent lamps.
Features
- Condition:100% brand new with good quality
- Product Type: HC–SR501 Body Sensor Module
- Operating voltage range: DC 4.5-20V
- Quiescent Current: <50uA Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
- Delay time: 5-18S (adjustable) the range is (0.xx second to tens of second)
- Block time: 2.5S(default) Adjustable to (0.xx to tens of seconds
- Board Dimensions: 32mm*24mm
- Angle Sensor: <100° cone angle
- Sensor Diameter:23mm (Default)
This link is to similar products listed on Amazon.com. It does NOT cost you more to purchase using this link, but as an Amazon Associate I earn from qualifying purchases. I hope this will eventually help me continue supporting the Home Automation community.
Product References

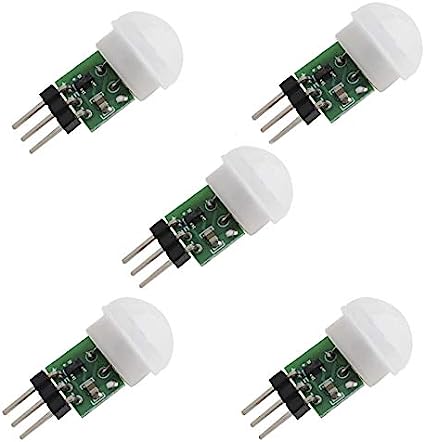

AM312 PIR Module
AM312 Human Sensing Module
- Working voltage: DC 2.7-12V;
- Static power consumption: <0.1mA;
- Delay time: 2 seconds;
- The blocking time: 2 seconds;
- Trigger: can be repeated;
- Sensing range: ≤100 degree cone angle, 3-5 m; (required depending on the lens)
- Working temperature: -20 to + 60 ℃
- PCB size: 10mm x 8mm
- Total size: Approx. 12mm x 25 mm
- Module Lens: Small lens
- Datasheet
SR602 PIR Module
Motion Sensor Detector Module Pyroelectric Infrared Sensory Switch
- Sensing distance: up to 5 meters; recommended 0-3.5M.
- Output: high level, H=3.3V, L=0V
- Power supply DC: 3.3V-15V
- Quiescent current: 20uA
- Size: 1.6 × 1.6 × 2 cm
- Datasheet
